Magnesia Bricks for Safety & Permanent Linings
High-MgO refractory bricks for safety and permanent lining applications in basic open-hearth furnaces, electric furnaces, oxygen converters, hot-metal mixers and non-ferrous smelting furnaces.
Basic Refractory Protection Behind the Working Lining
Safety and permanent linings form a secondary refractory barrier behind the hot-face working lining. They protect the furnace shell, support the lining structure and provide additional protection if the working lining becomes worn or locally damaged.
High-MgO bricks are suitable for basic metallurgical environments because they are compatible with alkaline slags and basic refractory systems.
Typical Uses of Magnesia Safety Lining Bricks
The referenced product is intended for several basic metallurgical furnaces and permanent lining systems.
Basic Open-Hearth Furnaces
Safety and structural lining in basic furnace zones.
Electric Furnace Walls
Permanent lining behind the working lining of electric furnace walls.
Electric Furnace Bottoms
Basic backing and safety lining for high-temperature bottom zones.
Oxygen Converters
Permanent lining behind the converter working lining.
Hot-Metal Mixers
Basic refractory lining support in molten-metal mixer vessels.
Non-Ferrous Smelting Furnaces
Selected permanent and safety lining applications, subject to process review.

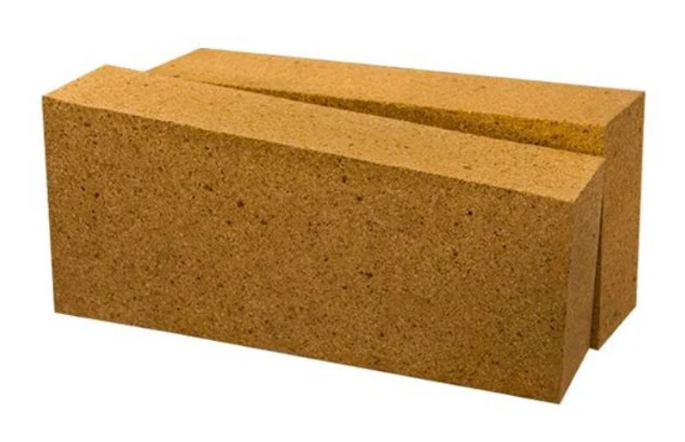

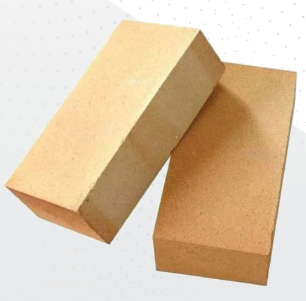

High-MgO Magnesia Safety Lining Brick
A dense basic refractory brick designed for permanent and safety lining service.

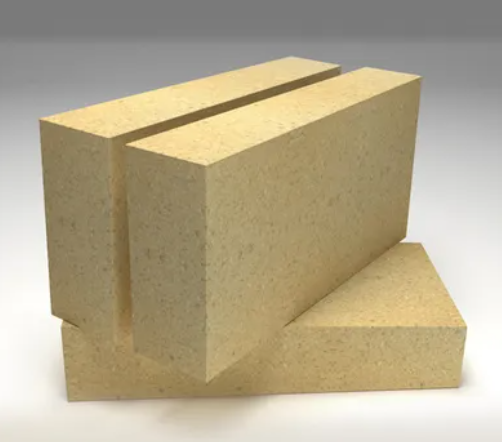

Magnesia Brick
A high-MgO basic refractory brick for safety and permanent lining applications, combining high magnesium oxide content with controlled density, porosity and compressive strength.
Chemical, Physical and Mechanical Properties
| Trade Name | MgO | SiO₂ | CaO | Al₂O₃ | Fe₂O₃ | Bulk Density | Apparent Porosity | Cold Crushing Strength |
|---|---|---|---|---|---|---|---|---|
| MEHR.MAG.95 | 95% | 2% | 1% | 0.3% | 0.8% | 2.90–3.00 g/cm³ | 14–18% | 700–900 kg/cm² |
Information Needed for Technical Selection
Complete operating and dimensional information is required to confirm the appropriate brick grade.
Request a Magnesia Safety Lining Brick Quotation
Send us the furnace type, lining zone, brick drawings, operating conditions, required quantity and destination country.
