Tundish Nozzles, Exchangeable Systems & Three-Plate Gates
STA Commerce supports international enquiries for tundish refractory components used to control molten-steel flow into continuous-casting equipment. The documented systems include metering nozzles, exchangeable nozzle assemblies, well blocks, upper and lower nozzles, and three-plate gates; technical requirements are coordinated with relevant refractory suppliers.
Product Diagram, System Types and Published Benefits

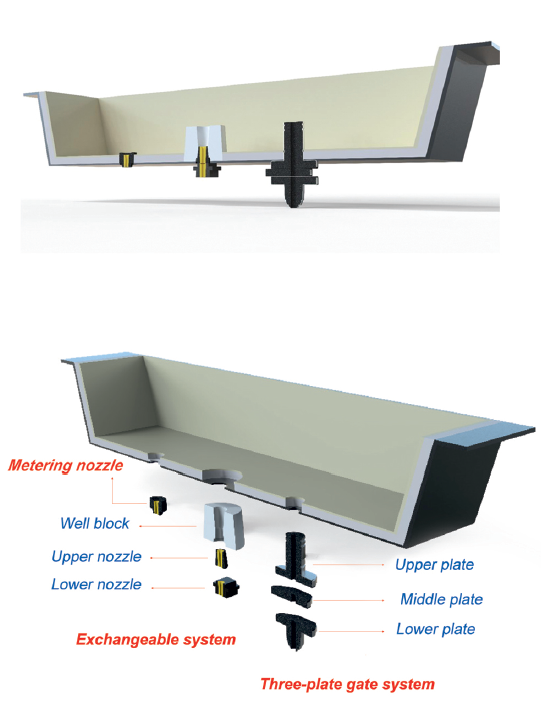

The supplied catalogue image is presented as the central technical reference. The structured sections below separate the three systems, their components and their principal operational benefits.
Three Tundish Flow-Control Arrangements
Each arrangement controls molten steel differently and should be selected according to casting practice, required flexibility, safety considerations and equipment design.
Metering Nozzle
A fixed-orifice refractory nozzle, typically incorporating an internal zirconia insert within an alumina-graphite body, regulates flow through its bore diameter.
Exchangeable Nozzle System
A fixed upper outlet element transfers molten steel to a replaceable lower nozzle, allowing the lower flow-control component to be changed during the casting campaign.
Three-Plate Gate System
A movable middle plate changes the overlap between the openings of stationary upper and lower plates, providing adjustable flow control and shut-off capability.

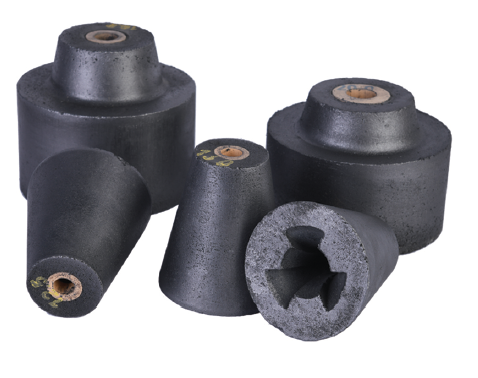

Tundish Flow-Control Refractory Components
Grouping the components under their corresponding systems makes the diagram easier to interpret and avoids presenting unrelated product cards without context.
Metering-Nozzle Arrangement
Fixed-orifice regulation of the tundish discharge rate.
Exchangeable Nozzle Arrangement
Modular upper and lower outlet components for flexible operation.
Three-Plate Gate Arrangement
Adjustable refractory plate assembly for regulating or stopping flow.
Benefits of an Integrated Tundish Flow-Control System
Typical Continuous-Casting Uses
Information Needed for Technical Selection
Complete operating and dimensional information helps determine the appropriate system, refractory grade and component geometry. Final specifications and suitability should be confirmed with the relevant refractory supplier against equipment drawings and casting requirements.
Related Steel Flow-Control Systems
For upstream ladle flow control and stirring, see our ladle slide gate system and ladle purging plugs and housing blocks.
Request a Tundish Flow-Control Product Quotation
Send us the required system type, drawings, bore dimensions, casting conditions, quantity and destination country for technical and commercial review.
